Amp QS 138 V3 520 Tuning Pack – 12T/13T/14T

$100.00

Save $14 compared to purchasing all three sprockets individually.

The Amp QS 138 V3 520 Tuning Pack includes one 12T, one 13T, and one 14T sprocket for QS 138 70H V3  geared motors with the 17/14 mm spline output shaft.

Get three popular gearing options in one package and quickly tune your bike for acceleration, trail riding, racing, or top-speed applications.



Full Product Description

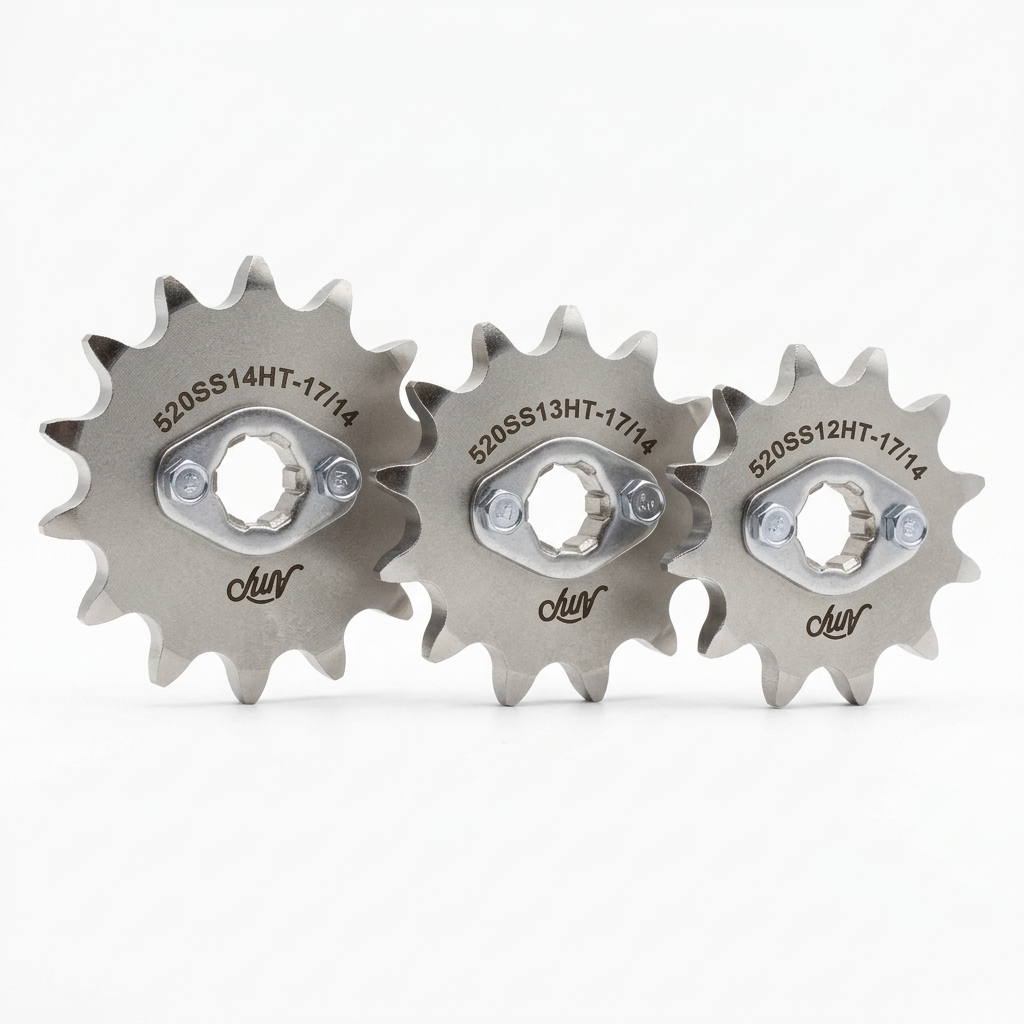

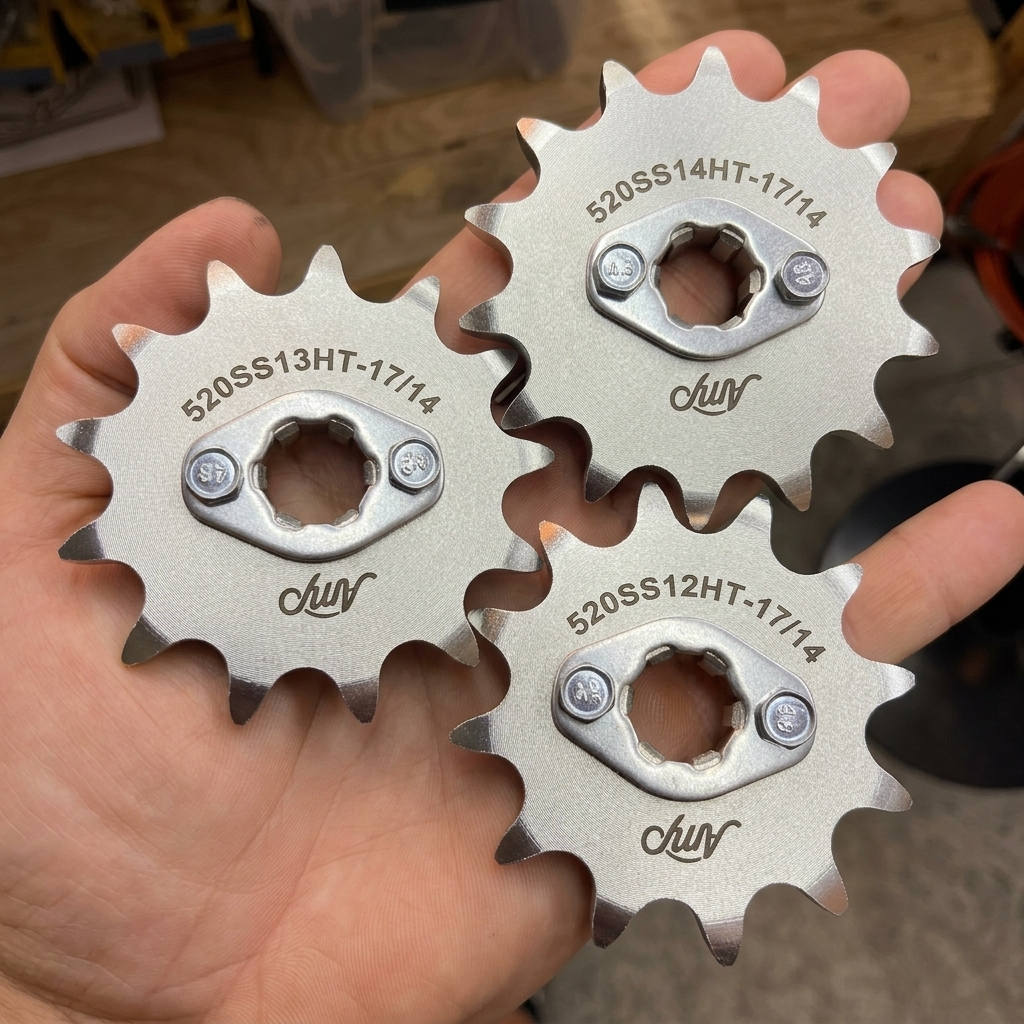

The Amp QS 138 V3 520 Tuning Pack is the most economical way to purchase three popular gearing options for QS 138 70H V3 geared motors.

This package includes one 12T, one 13T, and one 14T sprocket, allowing you to quickly experiment with different gearing combinations and find the setup that best matches your riding style, terrain, wheel size, and performance goals.

Each sprocket is precision machined from hardened steel and designed specifically for the 17/14 mm spline output shaft used on compatible QS 138 70H V3 geared motors.

Developed based on direct feedback from the Electric Motorcycle Builds community, these sprockets provide a high-quality alternative to factory options while offering multiple gearing choices for racing, trail riding, street use, and custom builds.

Whether you’re looking for maximum acceleration, a balanced all-around setup, or increased top speed, this tuning pack gives you the flexibility to dial in your gearing without having to place multiple orders.

At a glance

Chain size
520
Tooth count
12 | 13 | 14
Bore / interface
17/14mm Spline
SKU: Amp QS138 V3 520 Tuning Pack 12T-13T-14T Category:

Description

IMPORTANT FITMENT NOTICE

This sprocket package is engineered specifically for QS 138 70H V3  geared motors using the 17/14 mm spline output shaft.

Before ordering, please measure your motor shaft carefully to confirm compatibility.

The spline profile of these sprockets is as follows:

Widest inner spline diameter: 17.09mm

Narrowest inner spline diameter: 14.02mm

12 Tooth

  • Maximum acceleration
  • Excellent for trail riding and technical terrain
  • Strong low-speed performance

13 Tooth

  • Balanced acceleration and top speed
  • Great all-around gearing choice
  • Popular for general riding

14 Tooth

  • Increased top speed
  • Lower cruising RPM
  • Ideal for faster tracks and street-oriented applications

Features

  • Precision machined
  • Hardened steel construction
  • Direct-fit 17/14 mm spline design
  • Designed specifically for QS 138 70H V3  geared motors
  • High-strength racing-grade construction
  • Includes retaining plates and mounting hardware
  • Suitable for electric motorcycles, karts, ATVs, and custom vehicle projects
  • Corrosion-resistant galvanized finish

Package Includes

  • One Amp 520SS12HT-17/14 sprocket

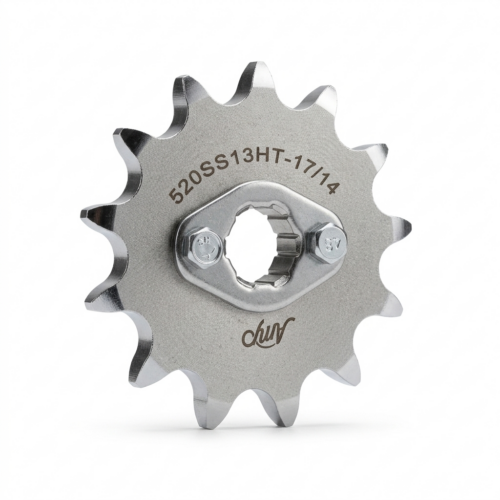

  • One Amp 520SS13HT-17/14 sprocket

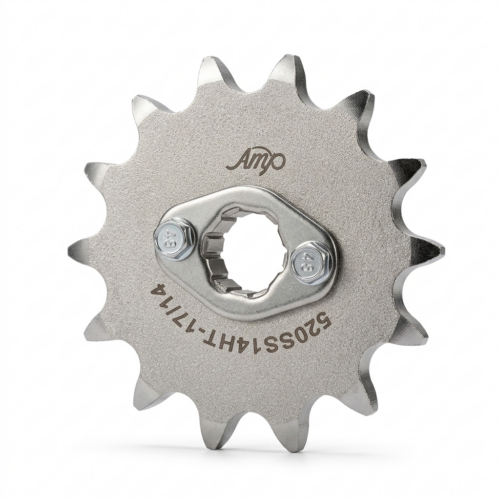

  • One Amp 520SS14HT-17/14 sprocket
  • Three retaining plates
  • Six mounting bolts

Specifications

Chain Size: 520

Tooth Counts Included: 12T, 13T, 14T

Spline Type: 17/14 mm spline

Material: Hardened Steel

Fits Motors: QS 138 70H V3  geared motors

SKU: Amp QS138 V3 520 Tuning Pack 12T-13T-14T

Condition: New

Every sprocket is made with high quality hardened steel with a galvanized coating to resist rust and corrosion. All three sprockets include retaining plates and mounting bolts.

Compatible motor applications

Use the application links below to review the currently documented fitment details before ordering.

Not sure about your motor? Ask us to confirm before ordering.

Additional information

Weight 1.5 lbs
Dimensions 7.5 × 2.5 × 1 in
Chain Size

520

Teeth

12, 13, 14

Bore / Interface

17/14mm Spline

Compatible Motors

QS Motor 138 70H V3
